Sonicwall NSa4650

NSA 4650 güvenlik duvarı, platformun herhangi bir dağıtılmış ortamın merkezinde oturabileceği ayrıntılı raporlama ve kapsamlı VPN hizmetlerinin yanı sıra Zararlı Yazılım Önleme, İzinsiz Girişi Önleme, Uygulama Görselleştirme ve Kontrol sağlar.

NSA Serisi, otomatik ileri tehdit önleme teknolojilerini orta menzilli yeni nesil güvenlik duvarı (NGFW) platformunda birleştiriyor. 10 GbE arabirimlerine sahip çok çekirdekli bir donanım mimarisi üzerine inşa edilen NSA Serisi, orta ölçekli ağların, şube ofislerinin ve dağıtılmış işletmelerin performans taleplerini karşılayacak şekilde ölçeklendirilir. Uygulama zekası ve kontrolü, gerçek zamanlı görselleştirme ve WLAN yönetimi gibi özellikler, tüm ağdaki uygulama ve kullanıcı trafiğini tanımlamak, izlemek ve kontrol etmek için kontroller sağlar.

NSa 4650 SERIES

Operating system	SonicOS 6.5.4

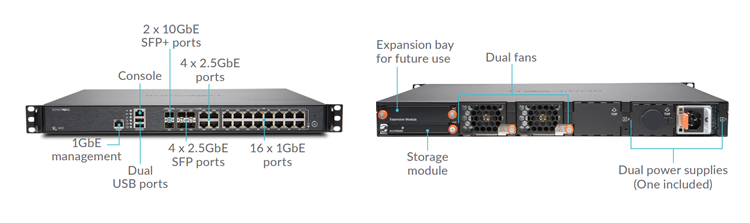

Interfaces	2 x 10-GbE SFP+,4 x 2.5-GbE SFP,4 x 2.5-GbE,16 x 1-GbE,1 GbE Management,1 Console
Expansion	1 Expansion Slot (Rear)*
Built-in storage (SSD)	32 GB
Management	CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs
SSO users	60.000
Maximum access points supported	128
Logging	Analyzer, Local Log, Syslog

FIREWALL/VPN PERFORMANCE

Firewall inspection throughput1	6.0 Gbps
Threat Prevention throughput2	2.5 Gbps
Application inspection throughput2	3.0 Gbps
IPS throughput2	2.3 Gbps
Anti-malware inspection throughput2	2.45 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL)2	675 Mbps
IPSec VPN throughput3	3.0 Gbps
Connections per second	40,000/sec
Maximum connections (SPI)	3.000.000
Maximum connections (DPI)	1.000.000
Maximum connections (DPI SSL)	175.000 / 145.000

VPN

Site-to-site VPN tunnels	4.000
IPSec VPN clients (maximum)	2.000 (4,000)
SSL VPN licenses (maximum)	2 (1.000)
Encryption/authentication	DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography
Key exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP

NETWORKING

IP address assignment	Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes	1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode
VLAN interfaces	400
Routing protocols4	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
VoIP	Full H.323v1-5, SIP
Standards	TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications (in progress)	ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC
High availability5	Active/Passive with State Sync Active/Active Clustering

HARDWARE

Power supply	Dual, redundant,350W (one included),
Fans	Dual, Removable
Input power	100-240 VAC, 50-60 Hz
Maximum power consumption (W)	93.6
Form factor	1U Rack Mountable
Dimensions	16.9 x 16.3 x 1.8 in (43 x 41.5 x 4.5 cm)
Weight	15.2 lb (6.9 kg)
WEEE weight	19.6 lb (8.9 kg)
Shipping weight	24.9 lb (11.3 kg)
Major regulatory	FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL,WEEE , REACH, ANATEL, BSMI
Environment (Operating/Storage)	32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity	10-90% non-condensing
